BR34 LJ
12 x outer diameter.
12 x external diameter
40N/mm² applied on copper conductors.

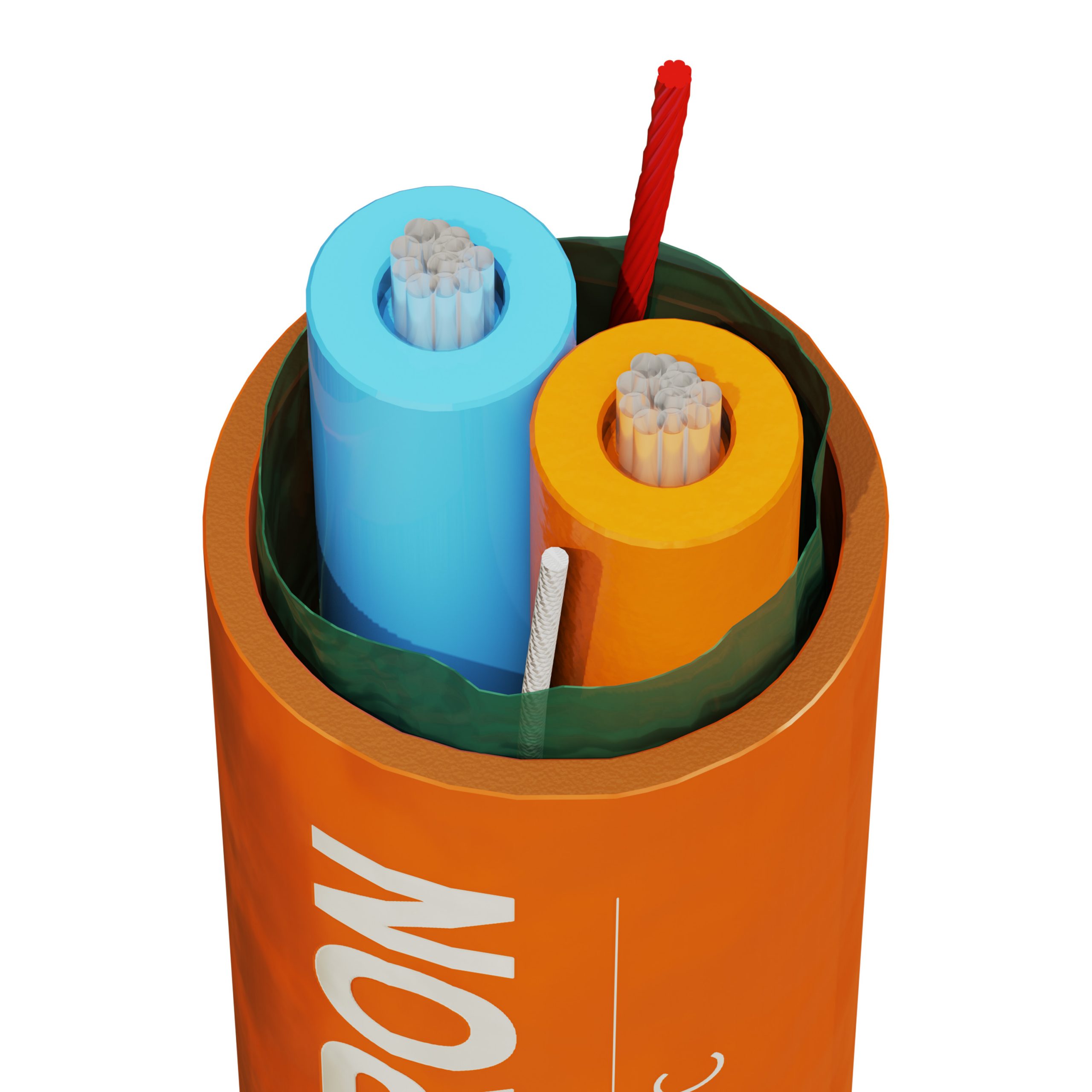

| Conductor | Tinned copper wires, section 2C18AWG, soft temper. Stringing: Class 2. |
|---|---|
| Isolation | Polypropylene, operating temperature up to 70 °C. |
| Identification | Blue and Orange. |
| Shielding | Tinned copper braid in contact with aluminum tape inverted and drain section 0.5mm². |
| Cover | Thermoplastic PVC compound ST2 105°C, with rip cord.. |
| Norm | UL 13 |
| Color | Orange. |
| Max. Capacitance / | Propagation | Nom. | Max. DCR | Alternate |
|---|---|---|---|---|
| speed/ | Impedance/ | @20ºC | voltage test/ | |
| (nF/km) | (%) | (ohm/km) | (ohm/km) | kV / Min |
| 78 | 66 | 100 +/- 15% | 21.3 | 1.0 / 1 |
| Isolation | Isolation | Shielding | Cover | Cover | Nominal weight of the cable |
|---|---|---|---|---|---|
| Thickness | Resistance of insulation | Diameter Nominal mm | Thickness/ mm | Diameter Nominal mm | Kg/Km |
| 0.55 | 3612 | 5.32 +/- 1.2 | 1.07 | 7.46 +/- 1.2 | 86.7 |
