BR79A VL
12 x outer diameter.
12 x external diameter
40N/mm² applied on copper conductors.

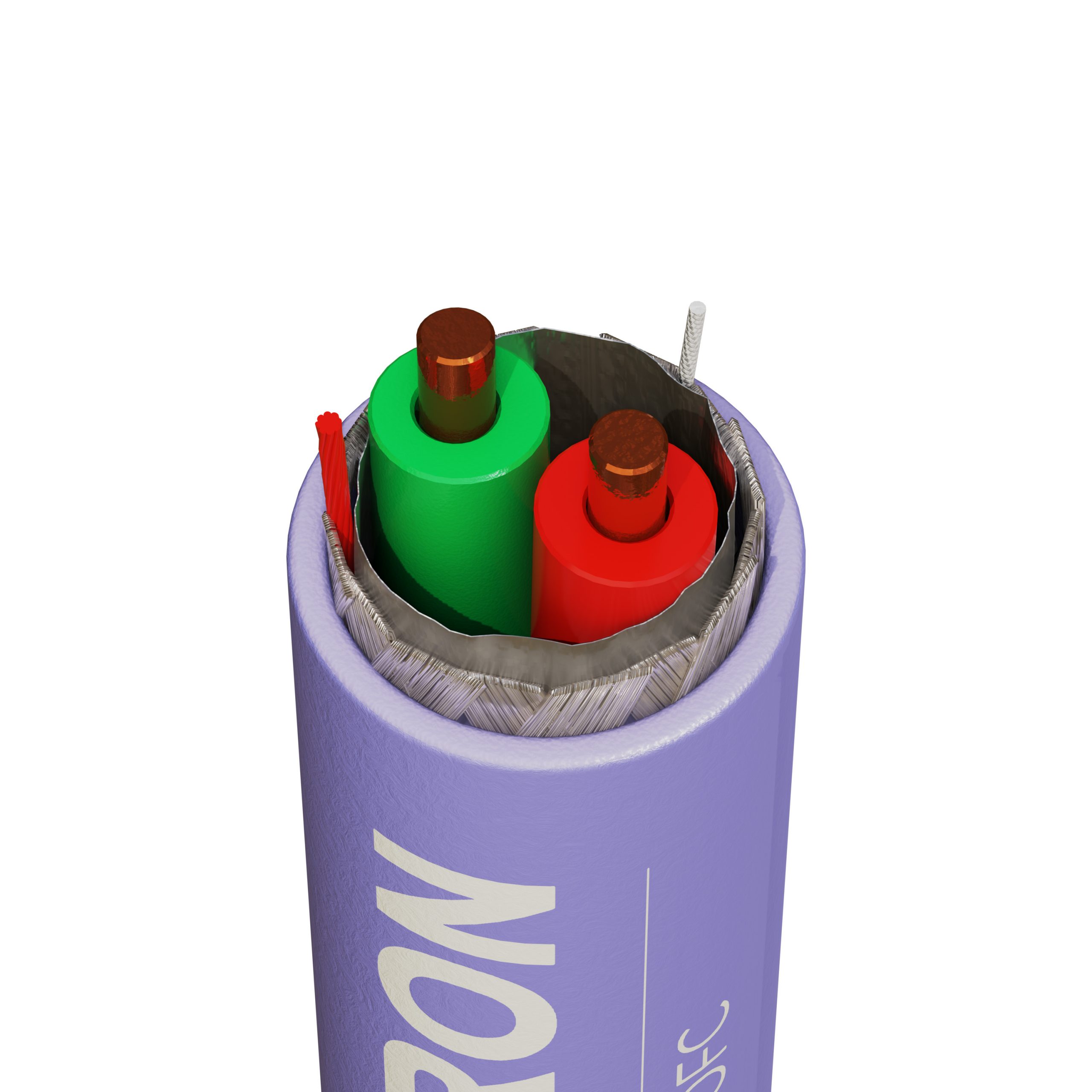

| Conductor | Bare copper wires, 2X22AWG section, soft temper. Stringing: Class 1. |
|---|---|
| Isolation | Expanded Polyethylene, operating temperature up to 70 ºC. |
| Identification | Green and red. |
| Shielding | Tinned copper braid in contact with aluminum tape inverted. Drain not applied. |
| Cover | PVC thermoplastic compound ST2 105°C, with rip cord |
| Norm | UL 444 |
| Color | Violet |
| Max. Capacitance/ | Max. | Nom. | Speed of | Voltage alternated | Nom. | Max. DCR | Atenuation / MHz = dB/Km | Impedance / MHz = Ohms |
|---|---|---|---|---|---|---|---|---|
| Max. Capacitance | of Resistance | Indutance | propagation/ | Test / | Impedance/ | @20ºC | 4 = 22,0 | 9,02 = 149,39 |
| (nF/km) | (nF/m) to 1kHz | (mh/km) | (%) | kV / Min | (ohm/km) | (ohm/km) | 9,6 = 21,8 | 10,71 = 150,99 |
| 27 | 5 | 0.35 | 78 | 1.0 / 1 | 150+/-15% | 55.2 | 16 = 31,8 | 19,07 = 150,01 |
| Isolation | Shielding | Cover | Cover | Nominal weight of full cable |
|---|---|---|---|---|
| Thickness | Diameter Nominal | Thickness/ | Diameter Nominal | Kg/Km |
| 0.9 | 5.72 +/- 1.2 | 1.08 | 7.88 +/- 1.2 | 69.4 |
