BR34 LJ
12 x outer diameter.
12 x external diameter
40N/mm² applied on copper conductors.

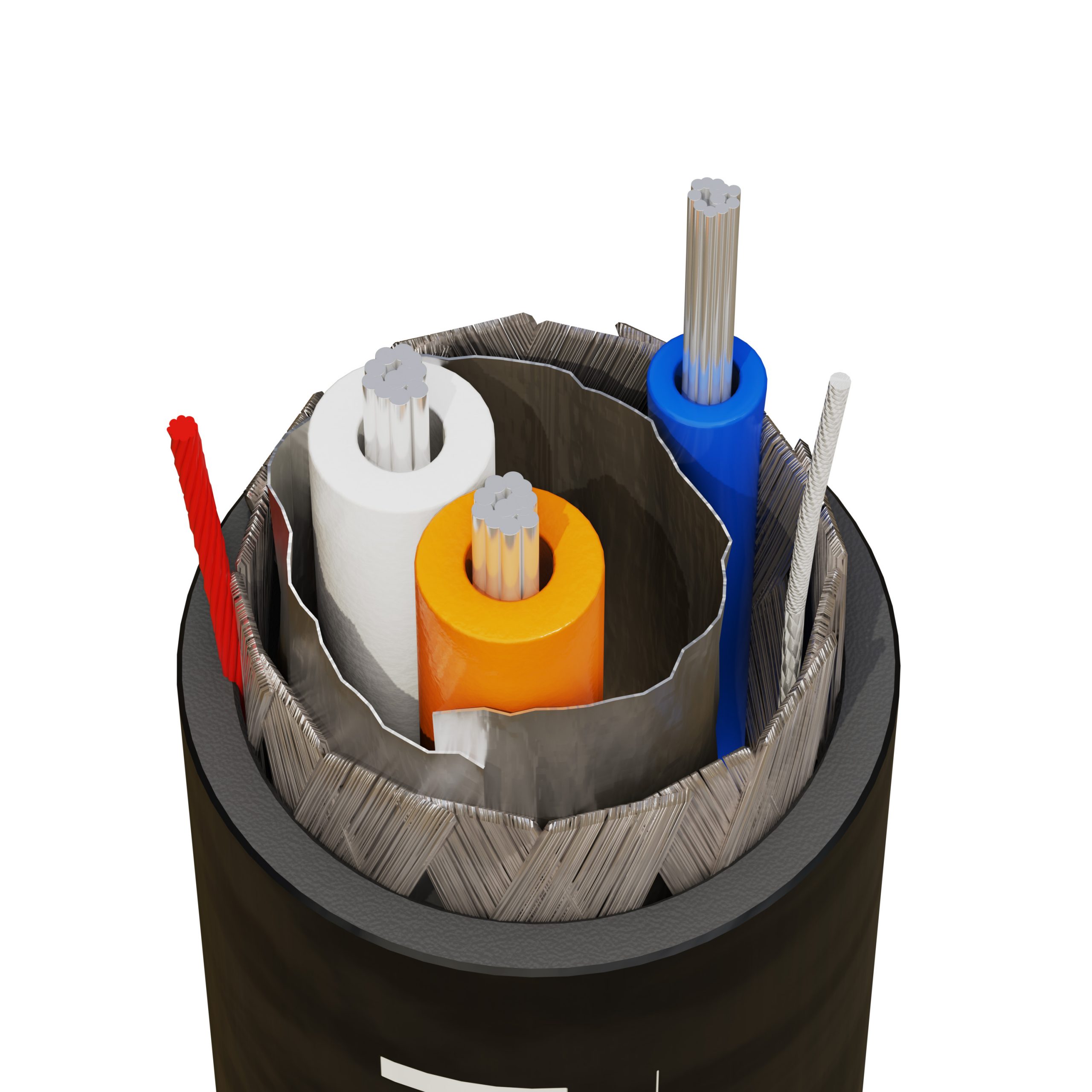

| Conductor | Tinned copper wires, soft temper. 1 pair 22AWG + 1C22AWG. Stringing: Class 2. |
|---|---|
| Isolation | Pair: Expanded Polyethylene, 70 ºC. Conductor: PVC/E thermoplastic, 105°C |
| Identification | Pair: Orange and White. Conductor: Blue. |
| Shielding | Tinned copper braid in contact with aluminum tape inverted and 22AWG section drain. |
| Cover | Thermoplastic PVC compound ST2 105°C, with rip cord. |
| Color | Black. |
| Max. Capacitance/ | Propagation | Nom. | Max. DCR | Nom. | Test of |
|---|---|---|---|---|---|
| speed/ | Impedance/ | @20ºC | Indutance | alternating voltage | |
| (nF/km) | (%) | @20ºC | (ohm/km) | (mh/km) | kV / Min |
| 36 | 78 | 120 +/- 15% | 57.4 | 0.6 | 1.0 / 1 |
| Isolation | Shielding | Cover | Cover | Nominal weight of the cable |
|---|---|---|---|---|
| Thickness | Nominal Diameter | Thickness/ mm | Nominal diameter mm | Kg/Km |
| 0.82 | 6.2 +/- 1.2 | 1.07 | 8.3 +/- 1.2 | 88 |
