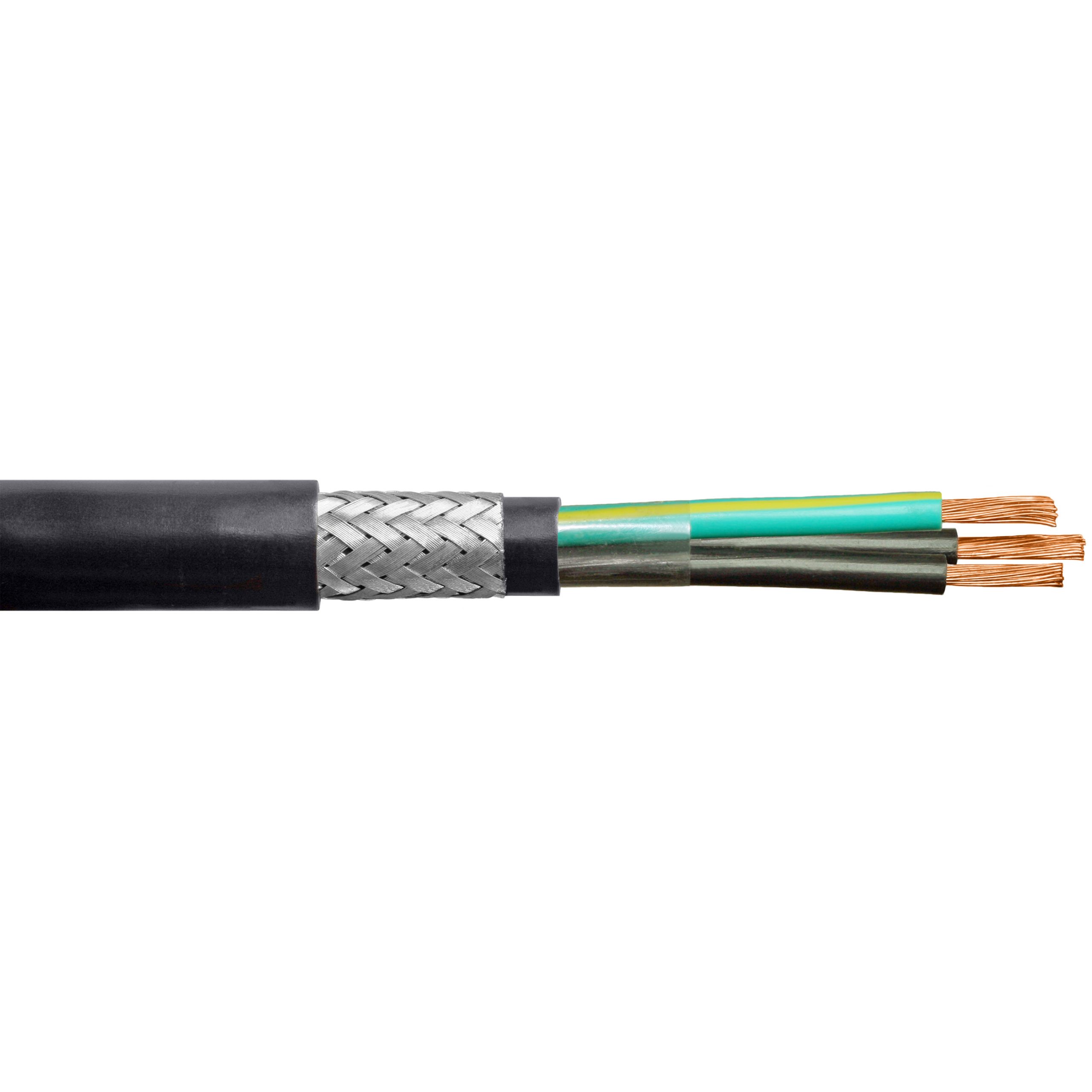

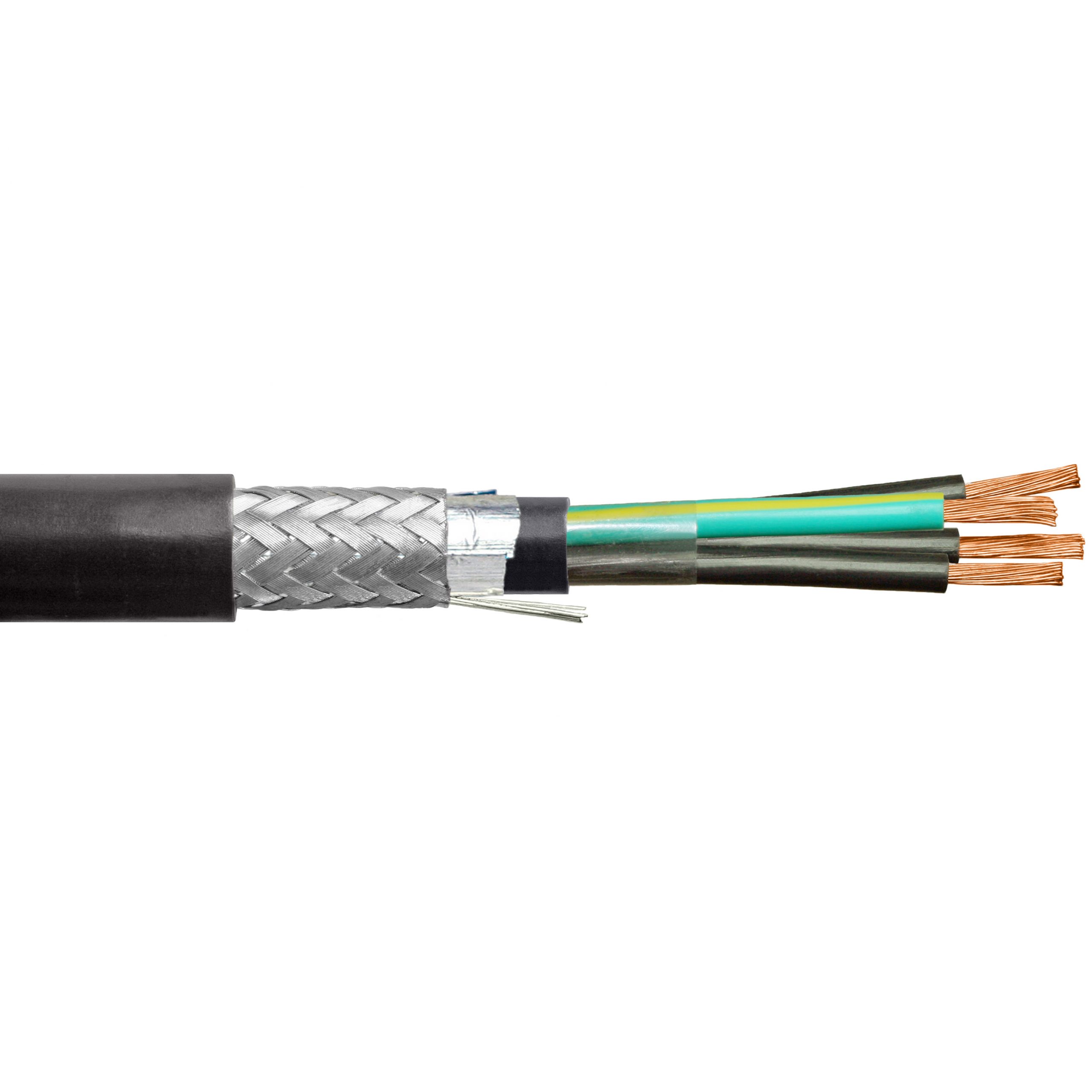

VFD – Frequency Inverter

XLPE/SHF1 – 0,6/1kV
90ºC IEC 60092-353

Full shielding tape
aluminum and drain

Steel braid frame

Unarmored cables: 6x Outer diameter.
Armored / shielded cables: 12x Outer diameter.

40N/mm² applied on copper conductors.

Conductor	Tinned copper wires, soft temper. Stringing: Class 2, according to IEC 60228.
Isolation	XLPE - cross-linked polyethylene, black numbered sequentially.
Cover	SHF1 - halogen-free thermoplastic compound, in black, with rip cord, cylindrical finish.

Upon request, instrumentation cables can be manufactured with the following construction options:

Conductor	Class 5 copper. With mica tape - IEC 60331-21
Identification	Colored veins; Green/yellow vein (protective conductor).
Isolation	HEPR (90ºC)
Cover	SHF2 - thermosetting compound halogen free. SHF2 (MUD) – halogen-free thermosetting compound with Mud resistant and longitudinal red stripe – NEK 606.
Color	Other colors on request.

IEC 60228	Conductors of insulated cables
IEC 60331-21 (conductor tape mica)	Tests for electric cables under fire conditions - Circuit integrity - Part 21: Cables of rated voltage up to and including 0,6/1,0kV
IEC 60092-353	Power cables for rated voltages 1kV and 3kV.
IEC 60092-376	Part 376: Cables for control and instrumentation circuits 150/250 (300V)
NEK 606 (sheath SHF2 MUD)	Cables for offshore installations halogen-free and/or mud resistant Technical specification
IEC 60092-350	Part 350: General construction and test methods of power, control and instrumentation cables for shipboard and offshore applications

Voltage test	1.5 kV / 5 minutes: 150V/250 (300V) (sections 0.5 and 0.75 mm2) 3.5 kV / 5 minutes: 0.6/1kV (sections 1.0 to 10 mm2)
Resistence test of isolation	80 to 500V / 1 to 5 minutes.
